WHITE CONVEYORS

download (1).png
storuveyor7 (2).jpg

White Conveyors Stor-U-Veyor offers storage with slots. This is the most popular design of a conveyor. It offers convenient identification of garments in any numbering system. And the Stor-U-Veyor is operated manually with hand or foot controls; or automatically with a keypad.

Features

  • Inverter controlled direct drive

  • Bi-directional hand switch - standard

  • Automatic Keyboard control - optional

  • With the keyboard control, the microprocessor selects the shortest route (left or right) to the order's location

  • Die-cast aluminum frames, with 10 slots, 12" width, rust proof finish.

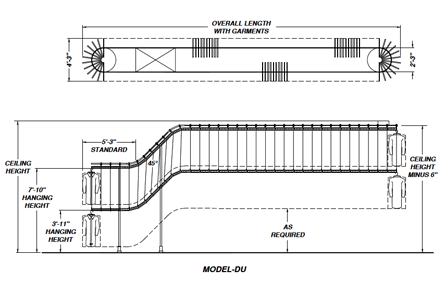

Use the overhead space of your store with the White Conveyors Up'N'Down model that goes up to the ceiling at a 45º angle. Load orders at the "nose" of the conveyor on ground level, and store them off the floor. Add extra square footage by using valuable floor space under the conveyor.

Features

  • Inverter controlled direct drive

  • Bi-directional hand switch - standard

  • Automatic keyboard control - optional

  • With the keyboard control, the microprocessor selects the shortest route (left or right) to the order's location

  • 10 slot stamped steel frame, 12" width, with nylon inserts

  • Hardened steel universal with heat treated steel insert bushing

  • Screw type take-up for chain slack adjustment


This White Conveyors product has the best of both worlds - two tiers of garments, plus storage overhead. It is ideal for shirt storage, or locations with high ceilings. The Double Deck Up'N'Down provides maximum storage in minimum space, an innovative design that supplies double hanging capacity for today's busy stores.

Features

  • Inverter controlled direct drive

  • Bi-directional hand switch - standard

  • Automatic Keyboard control - optional

  • With the keyboard control, the microprocessor selects the shortest route (left or right) to the order's location

  • Powder coated drop rod each frame, removable lower nylon frame.

  • Hardened steel universal with heat treated steel insert bushing

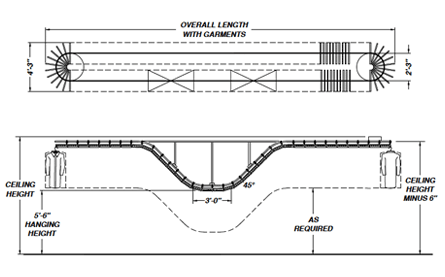

The side loading White Conveyors V-Dip takes up the space of one garment (± 2') on the floor... but uses all available overhead space. Ideal for a narrow call office, or where floor space is at a premium. The V-Dip takes advantage of your store's cubic capacity, while using minimum floor space.

Features

  • Inverter controlled direct drive

  • Bi-directional hand switch - standard

  • Automatic Keyboard control - optional

  • With the keyboard control, the microprocessor selects the shortest route (left or right) to the order's location

  • 10 slot stamped steel frame, 12" width, with nylon inserts

conveyor_ddstor2 (1).jpg

This unique White Conveyors product offers two full levels of hangered garments that operate together at the touch of a button. The Double Deck Stor-U-Veyor provides double capacity for shirts, pants or other garments. Available in two configurations: DS, with fixed lower level cast aluminum chain; or DW with removable nylon lower frames. DW model permits mixing of long and short garments as needed.

The DS model has 12" wide, 10 slot cast aluminum upper and lower frames with fixed drop rod every 2 frames.

The DW model has 12" wide, 10 slot cast aluminum upper frame and 10 slot nylon lower frame with removable drop rod every frame (available in any length).

Features

  • Inverter controlled direct drive

  • Custom designed for the maximum increase in your storage capacity

  • Each configuration can be expanded or modified as your needs change

  • Bi-directional hand switch - standard

  • With the optional keyboard control, the microprocessor selects the shortest route (left or right) to the order's location

  • DS has 10 slot cast aluminum upper and lower frame, 12" width

  • DW has 10 slot cast aluminum upper and 10 slot nylon lower frame, 12" width
